High Power Single Mode Continuous Fiber Laser

HQ series high-power single-mode continuous fiber lasers are completely independently developed and produced by thermal stimulation light. By solving bottleneck issues such as mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality, this laser increases the average output power of a single resonator and single transverse mode to 12,000W. This series of products integrates high average power, multiple anti-reflection, high-quality beam quality and high electro-optical conversion efficiency. It is widely used in fields such as fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping. Especially in thick metal plate cutting, this laser not only has fast cutting speed, but also has fine cutting seams and bright cross sections. It has significant advantages over other similar lasers on the market.

产品信息

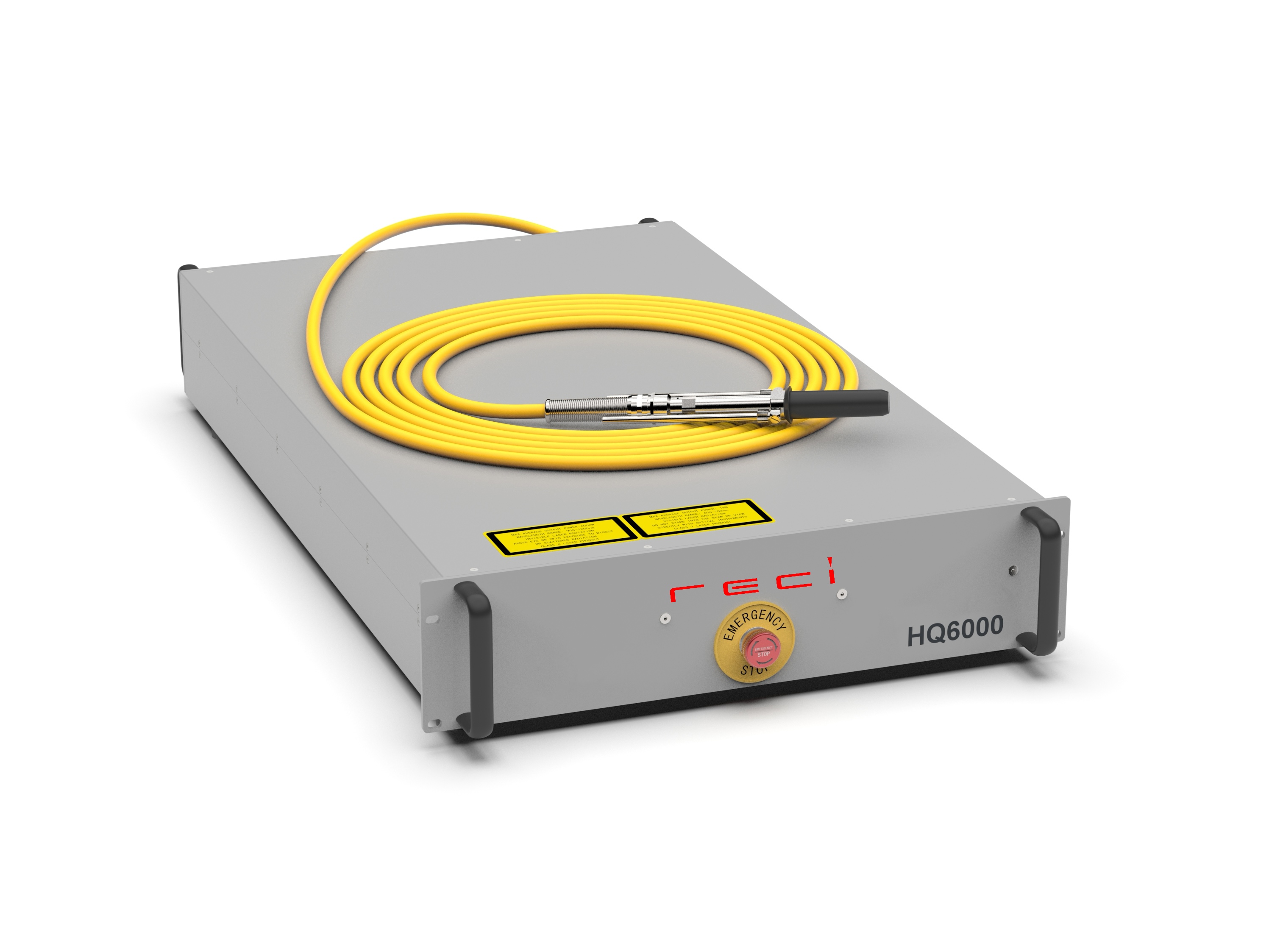

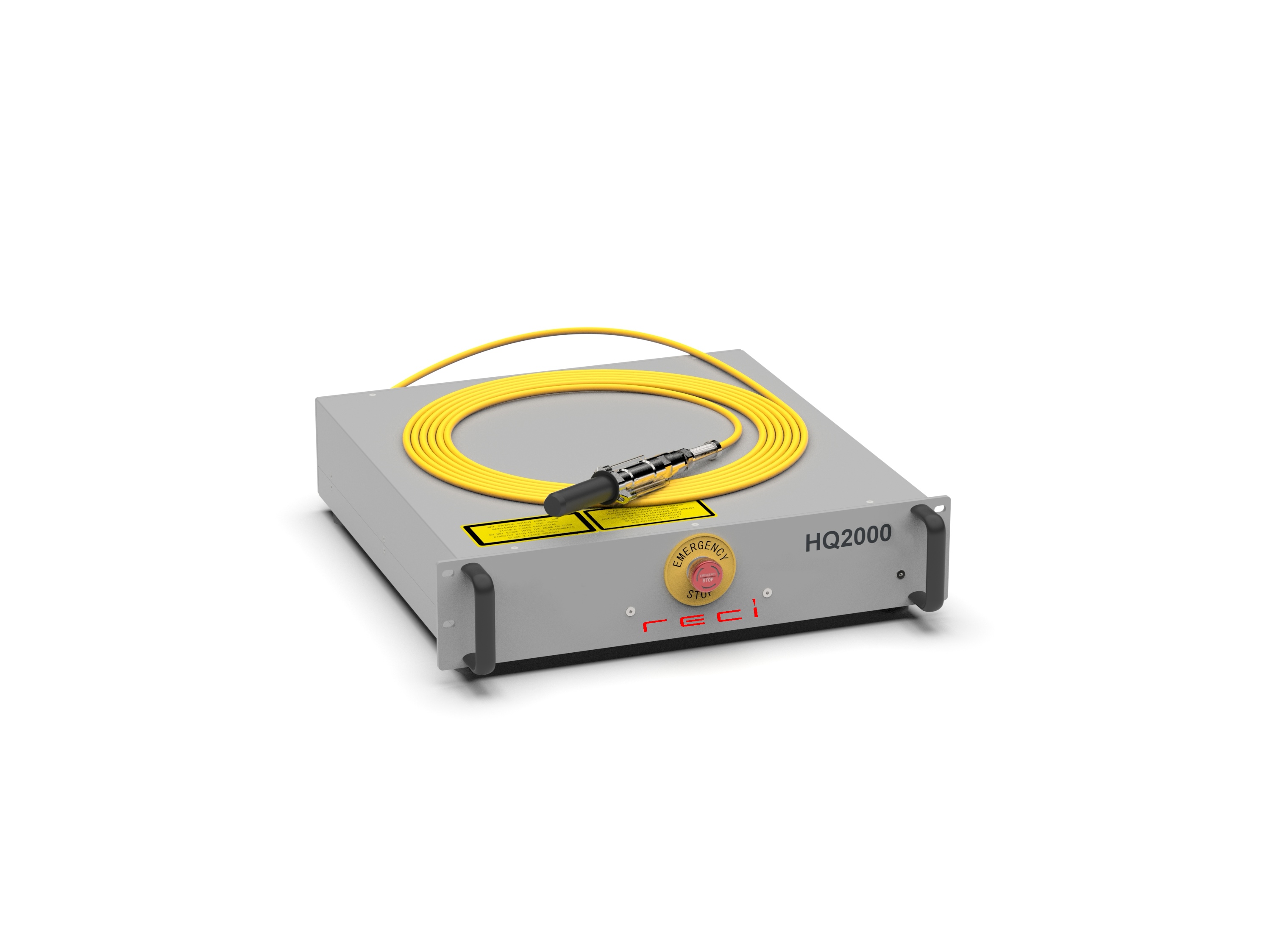

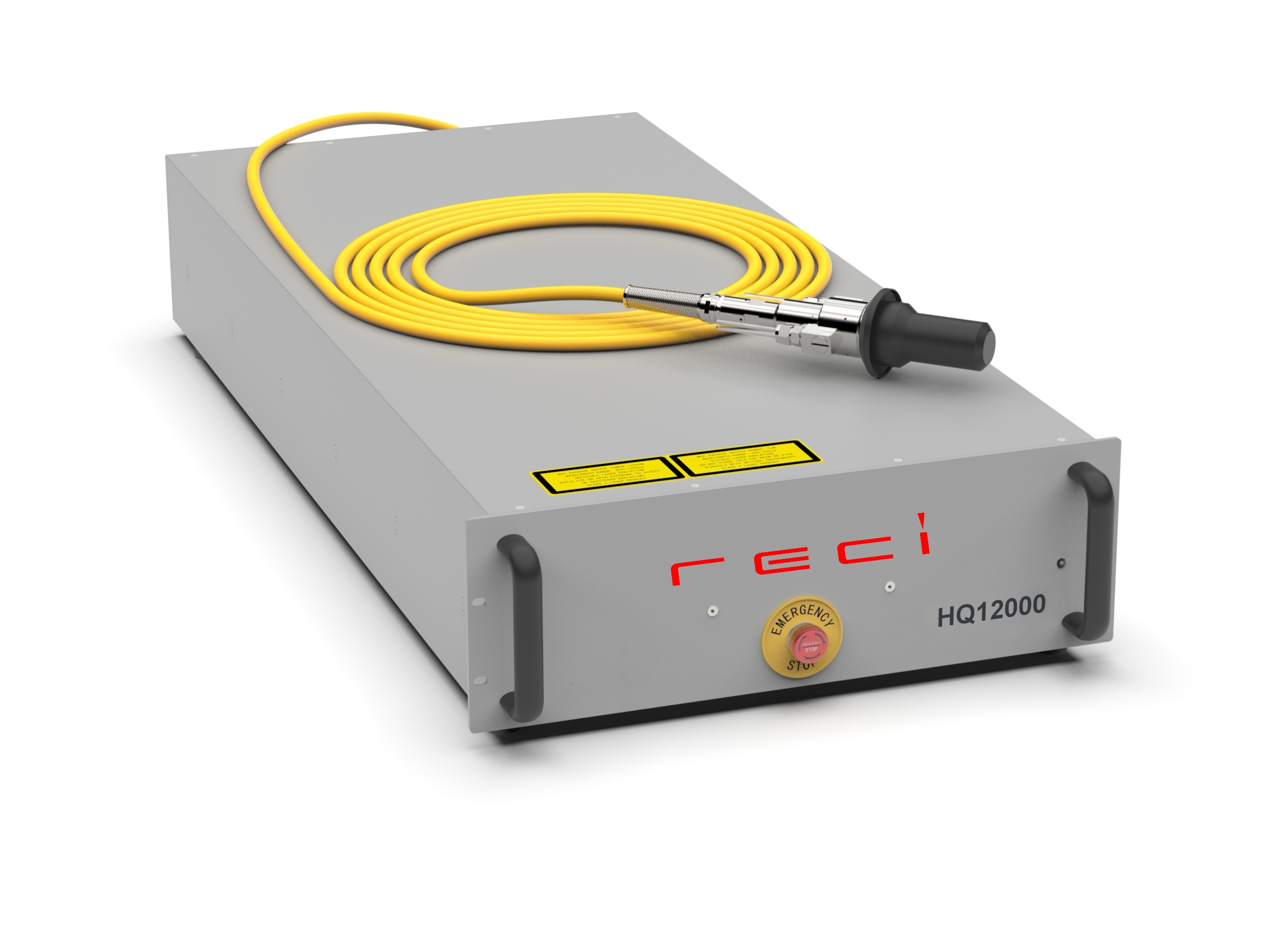

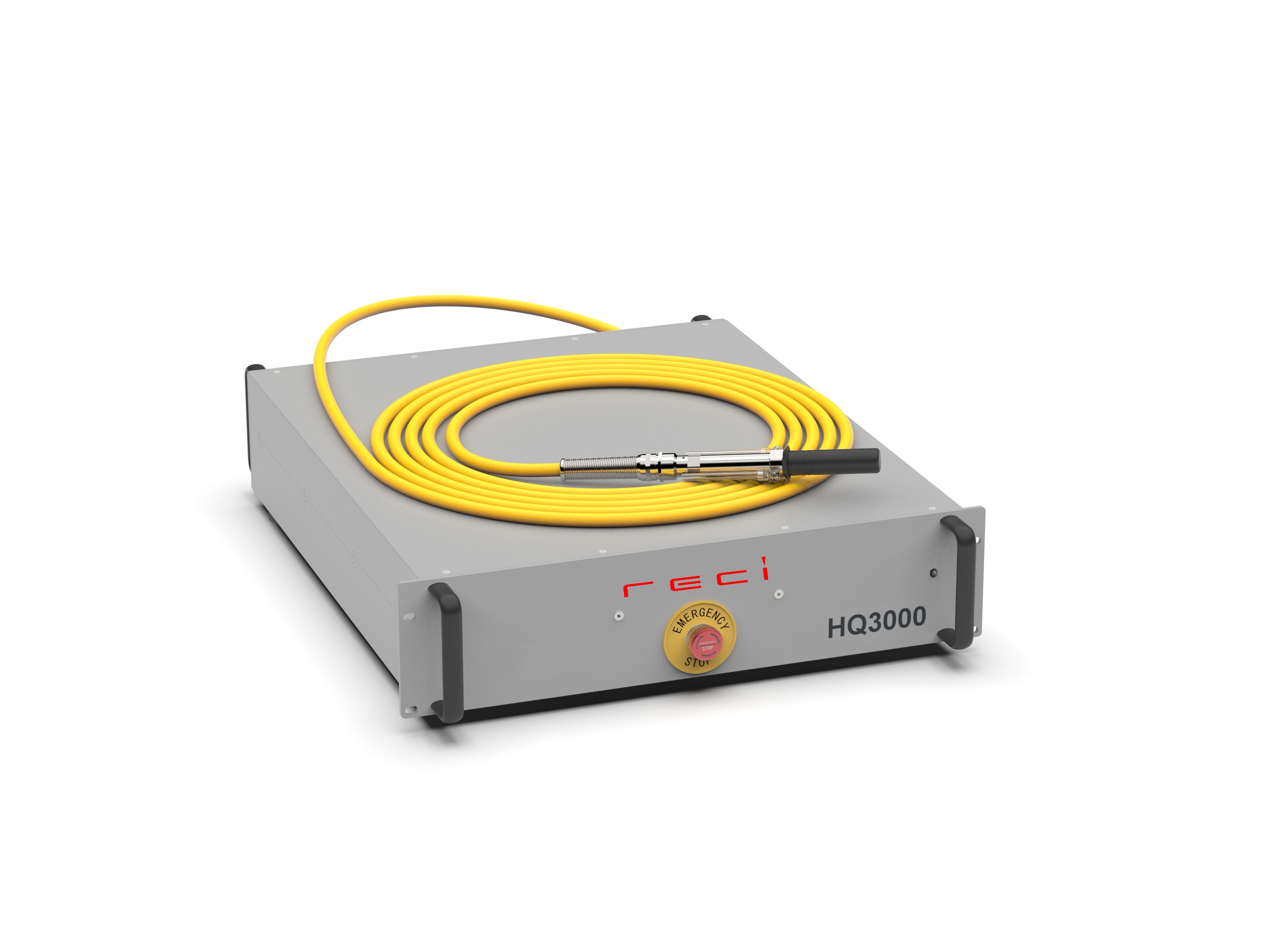

MODEL	HQ 1500	HQ 2000	HQ3000	HQ4000	HQ 6000	HQ 12000
Output Power（W）	≥ 1500	≥ 2000	≥ 3000	≥ 4000	≥ 6000	≥ 12000
Central Wavelength（nm）	1080 ± 3
Operating Mode	CW/Modulate
Power Range（%）	10-100
Max. Modulation Frequency（kHz）	20
Power Instability	< 3%
Red Laser power（mW）	> 0.5
Beam Delivery Optics	QBH					Q+ / LOE
Output Fiber Diameter（μm）	30/50				50/100	100
Optical Fiber Length（m)	10/15		20			30
Operating Voltage（VAC）	220V ± 10%、50/60Hz		380V ± 10%、50/60Hz
Power Consumption（W）	< 5300	< 7280	< 10600	< 14000	< 18000	< 35000
Control Mode	External/Local AD
Ambient Temperature（℃）	5～40
Ambient Humidity（%）	< 70
QBH Cooling Water Temperature（℃）	Room temperature
Cooling Water Temperature（℃）	25（Summer 27）
Cooling Water Flow with load（L/min）	> 15	> 20	> 30	> 35	> 60	> 100
Dimensions W x H x D（mm³）	483 x 125 x 506	483 x 125 x 626	483 x 125 x 870			482.6 x 169 x 1173
Weight（kg）	<36	<37	<57	<60	<83	<100
